Hex Stack

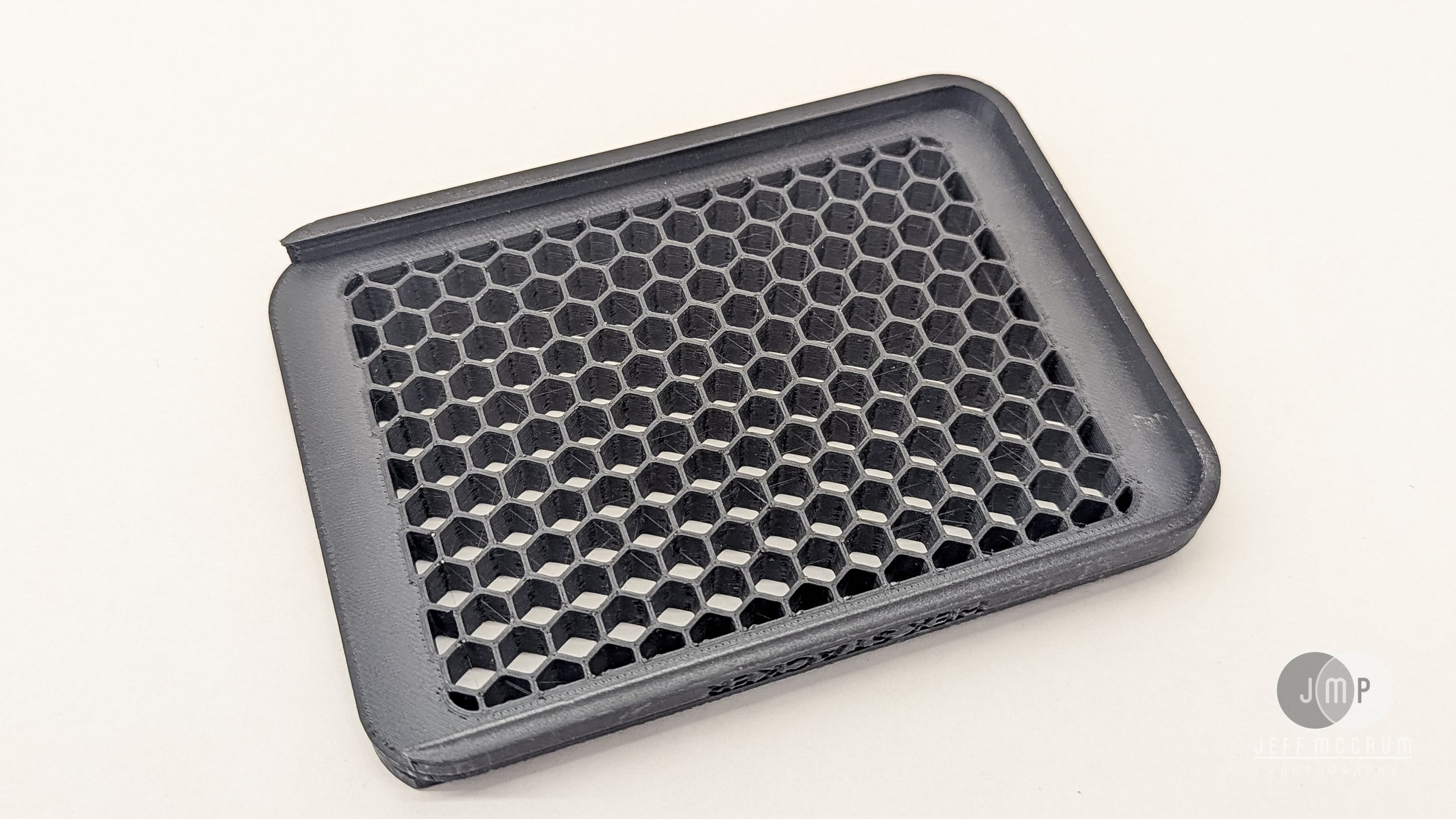

The Hex Stack was created to provide the Luxli Viola with a similar hex-cell louver as the Fiddle line. This fixture allows for an increased amount of flexibility however, as the light modifiers slide into position along the side of the fixture and have been designed to stack to provide the user with a tighter beam if desired by simply stacking them as needed

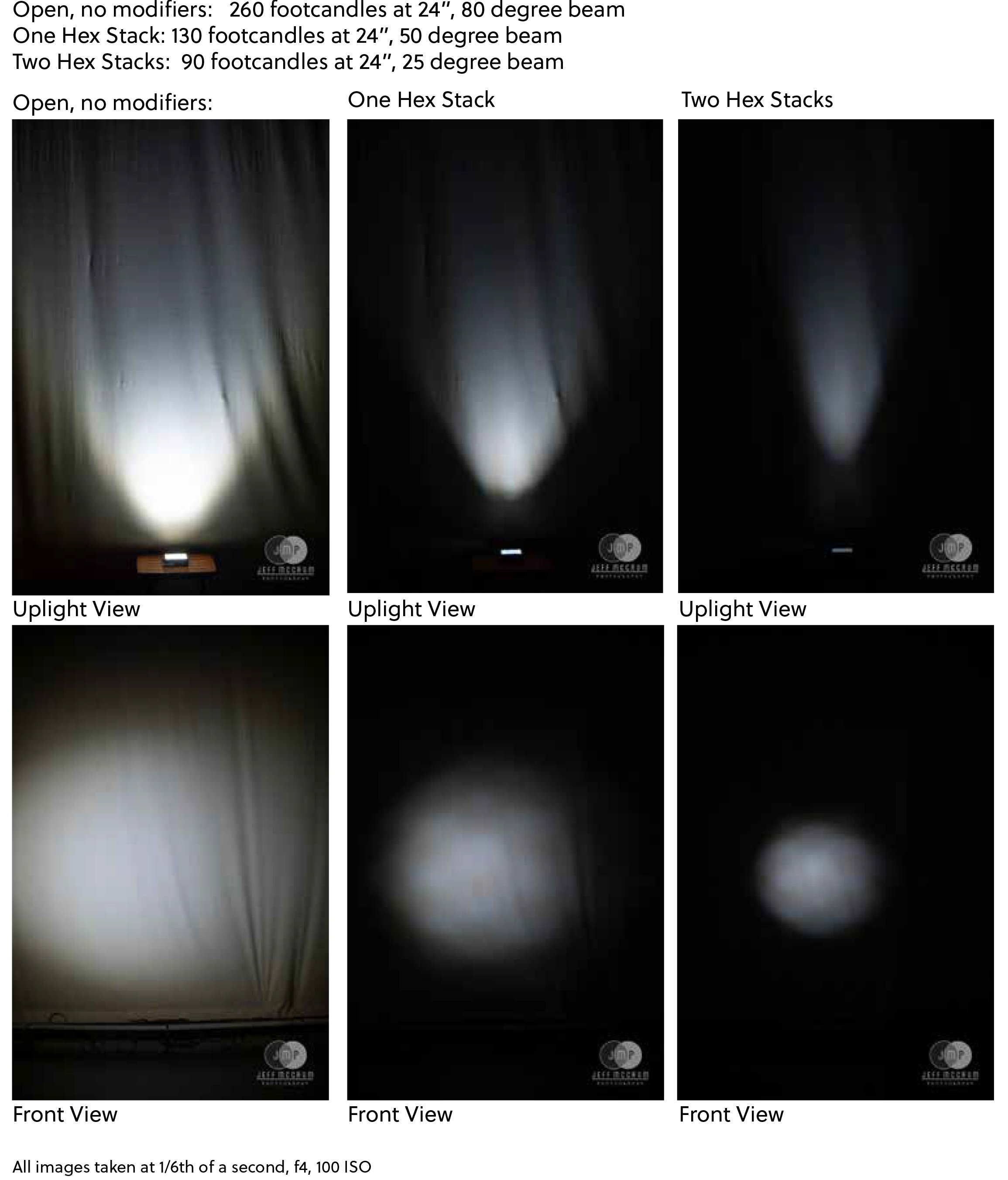

1 - Each light modifier the light beam by about 20 degrees to remove spill light.
2 - Fully hides the light source by overlapping the outside of the fixture.
3 - Decreases the intensity from the original output by about one stop.
The Hex Stack is held solidly in place by sliding into a slot in the fixture itself from either side. Additional Hex Stacks can be slid into place on top of each other, narrowing the beam distribution as
required by the end user. This design was created with night photographers in mind who are looking for an adjustable tighter focus and neutral density gel can also be added for those who want even lower intensities below the current 0.1 percent. Finished in a matte black PLA this reduces glare and reflections in images even when the fixure is carried through the shot.
Measures 0.75” tall, 4” wide, and 5.5” long, Viola fixture not included. Use of Luxli and Viola terms do not associate this product or website with Gradus Group.
